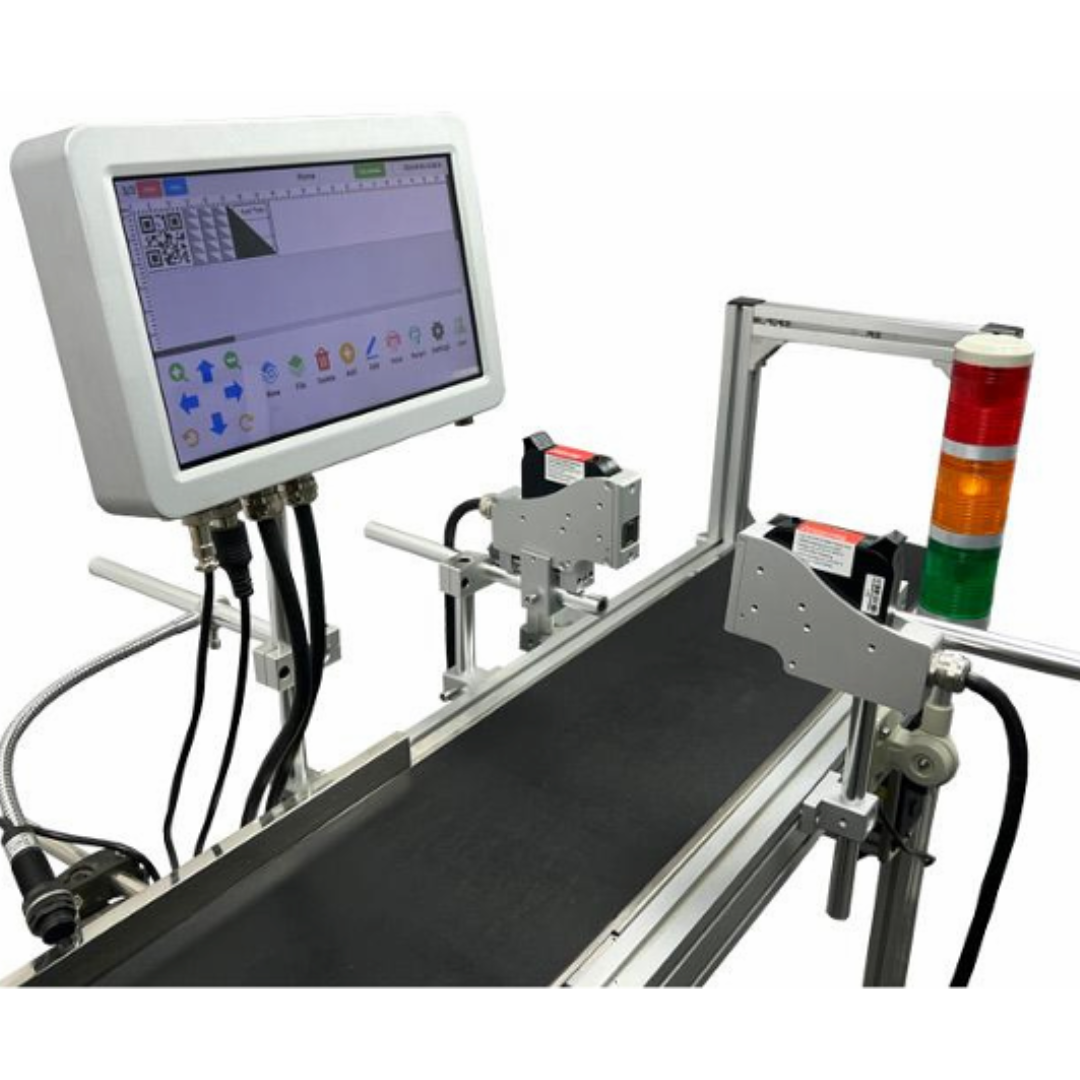

G0510 Thermal Inkjet Printer

The G0510 modular online inkjet printer, engineered to deliver unmatched reliability, efficiency, and ease of maintenance for today’s high-speed production environments.

G0510 Thermal Inkjet Printer

Specifications

Parameters of Screen : 10.1 inch capacity touch screen (1024×600px)
Print Height
  • Print Head: 12.7 or 25.4 mm
  • Print Head: 25.4 or 50.8 mm
  • Print Head: 38.1 or 76.2 mm
  • Print Head: 50.8 or 101.6 mm
Printer's Material : Avionic-level aluminium
Inks
  • Water-based ink
  • Weak solvent-based ink
  • Strong solvent-based ink
  • UV ink
Printing Speed
  • Max for 90 dpi double-row channels: 539 m/min
  • Max for 150 dpi double-row channels: 420 m/min
  • Max for 300 dpi double-row channels: 210 m/min
Printing Times
  • Max for fixed data: 80+/s, 4800 products/min
  • Max for variable data: 6+/s, 360 products/min
Supported Fonts : Any font in Windows can be added.
Printing Content : Texts in different languages / date / graphs / bar code (GS1 code / QR code) / counter / batch number / variable database (texts / graphic codes) / random number / real-time transmission data / separator / data from scanners.
Printing Content : Code 39, Code 128, UPCA, EAN8, EAN13, Data Matrix, MicroPDF417, Micro QR Code, GS1 DataBar-14, GS1 DataBar-Exp, GS1 DataBar-Ltd, Other codes required by customers can be added.
Socket / Serial Communication Protocol
  • Socket Communication Protocol (Network Interface)
  • Serial Communication Protocol (RS232 Interface)
Operating System : Android
Working Environment Temperature
  • Temperature : 0–45°C
  • Humidity : 30–80% RH
Parameters of Power Supply
  • Input : AC100–240V, 50/60Hz
  • Output : 30V/3A (single-head online printer)
  • Output : 30V/5A (2 or more heads online printer)
Users Management : Users can be added freely. User accounts, passwords, and permission levels can be configured freely.
